Dry Type Transformer

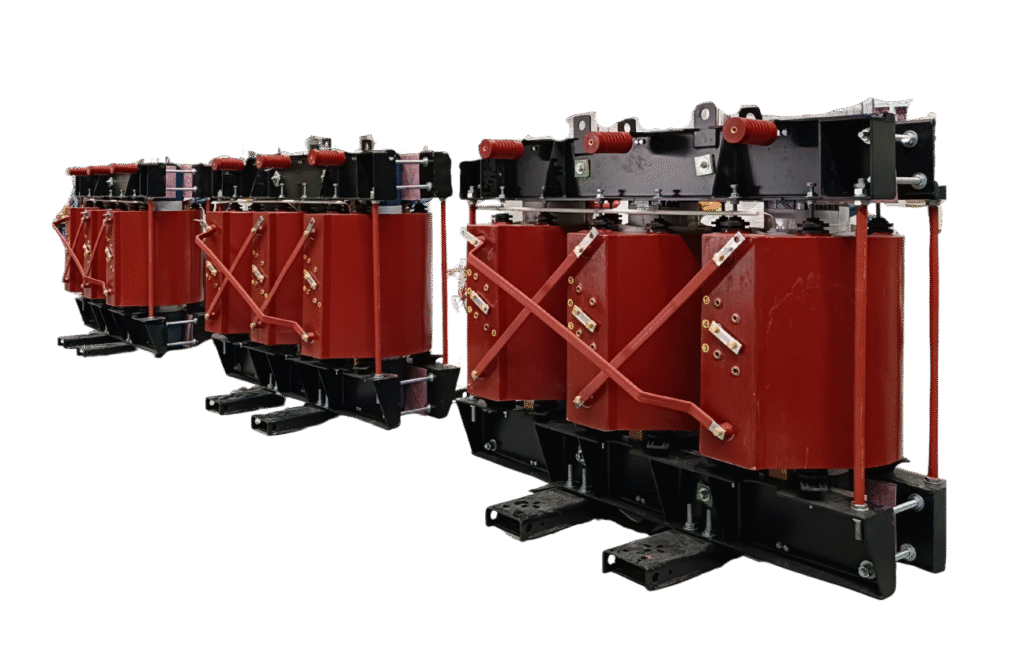

Cast Resin (CRT) Transformer
Unitrans Power LLP is a leading manufacturer of Dry Type (Cast Resin) Transformers, Core Coil Assemblies, Transformer Tanks, CSS, and other transformer accessories, based in India. We specialize in producing dry-type transformers with ratings from 50 kVA to 5000 kVA and voltages from 440 V to 36 kV, continuously innovating through R&D for future-ready solutions. Our expertise ensures high-quality, reliable, and long-lasting performance for diverse power distribution needs.
Unitrans Cast Resin Transformers (CRT) are particularly suitable for moisture-prone and harsh environments. The primary and secondary windings are fully encapsulated in epoxy resin, providing superior insulation and preventing moisture or dust from affecting performance. This non-hygroscopic design allows uninterrupted operation even in highly humid or contaminated areas. Optional metal enclosures up to IP55 (NEMA 3R/4X) further safeguard the transformer from dust, rain, and environmental stress.
Technical Features
- Rating: Up to 5000 kVA
- Voltage: 480 V – 36 kV
- Frequency: 50 Hz or 60 Hz
- Cooling Class: ANAF or AN
- Temperature Rise: 60°C, 55/65°C
- Winding Material: Aluminium or Copper
- Standards: IS, NEMA, ANSI, IEEE, ISO
Design Highlights
- Epoxy Resin Encapsulation for moisture and dust protection
- Superior thermal performance and dielectric strength
- Optional IP55 metal enclosure for demanding environments
- F and H class insulation for high temperature withstand (155°C – 180°C)
- Mechanically robust, shock-resistant, and long-lasting
Quality Control
Unitrans Power LLP follows ISO 9001:2015 standards, with stringent inspection and testing at every production stage. Advanced testing equipment and rigorous quality management procedures ensure reliability, performance, and safety in every transformer we deliver.
Unitrans Power LLP continues to deliver engineered excellence in dry-type transformer solutions, combining safety, efficiency, and durability to meet the evolving needs of utilities, industries, and specialized applications worldwide.
Applications
Dry Type Transformers are highly versatile and reliable, suitable for:
| Industry | Traction | Service Sector | Marine | Renewable Energy |
| Automotive | Railway | Hospitals | Cruise Ships | Wind Parks |
| Mechanical | Tramway | Hotels | Multifunctional Ships | Solar Power Station |
| Chemical | – | Real Estates | LNG Carriers | Hydroelectric Power |
| Paper Mills | – | Schools, Banks | Offshore Drilling Rigs | – |
| Foundries (Steel Plants) | – | Shopping Centres | – | – |
